Setting up your Record Kit

Simeon Drage
  • Updated



1) Kit Type

a. Check the dispatch note (or your order details) to confirm if your kit is a Record Kit Basic or Basic Pro.

b. Check if a device has been ordered with your kit (Android or iOS). If not, a dedicated device will need to be sourced for the kit, or the kit can be used as a BYOD (bring your own device) kit, where each user provides their own recording device.

The kit type will inform what stickers you use for step 3. The stickers advise the user what to expect in the kit and if they need to provide their own device.



2) Package Contents

Basic

  • Basic 1 x Record Kit, 1 x Wall Plug
  • Basic Pro 1 x Record Kit, 1 x Charging Hub (4-Port), 1 x additional Bluetooth Mic

(Android and iOS versions will also have: 1 x Phone or Tablet and 1 x Device Cover)



Standard

  • Standard 1 x Record Kit, 1 x Wall Plug, 1 x Floor Tripod
  • Standard Pro 1 x Record Kit, 1 x Charging Hub (4-Port), 1 x Floor Tripod, 1 x additional Bluetooth Mic

(Android and iOS versions will also have: 1 x Phone or Tablet and 1 x Device Cover)



Dual

  • DualView 1 x Record Kit, 1 x Charging Hub (4-Port), 1 x Floor Tripod, 1 x additional Bluetooth Mic
  • DualView Pro 1 x Record Kit, 1 x Charging Hub (6-Port), 1 x Floor Tripod, 3 x additional Bluetooth Mics

(Android and iOS versions will also have: 2 x Phones or Tablets and 2 x Device Covers)

If the GoLive feature has also been ordered, you will have been sent a GoLive Earpiece too.

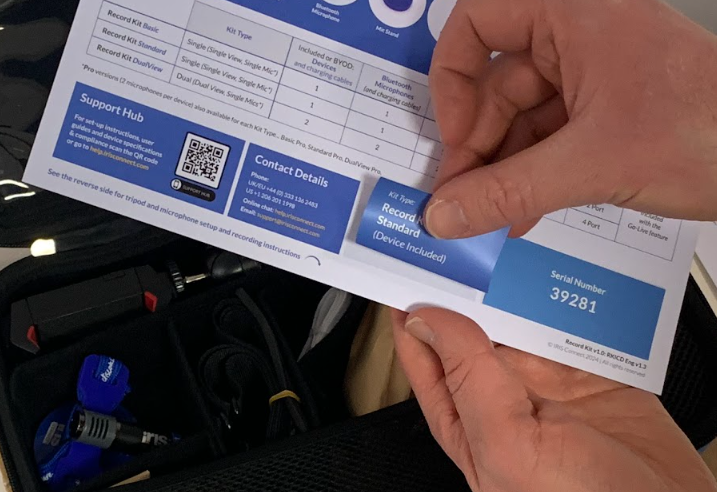

3) Kit Type Sticker

Once you know the kit type (see Step 1), stick the relevant Kit Type sticker onto the space on the Instruction Card (in the lid of the kit) using the stickers pack (also in the lid of the case).





4) Devices *BYOD version kits skip this section*

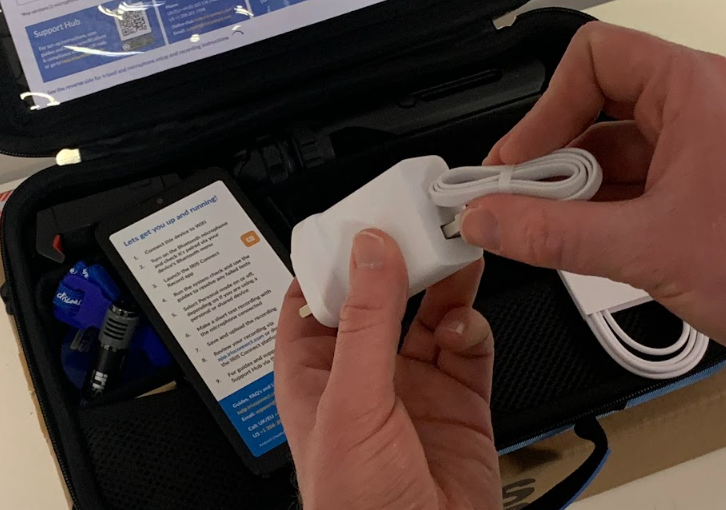

a. Unbox the device/s and plug the included device cable into the charger in the kit.

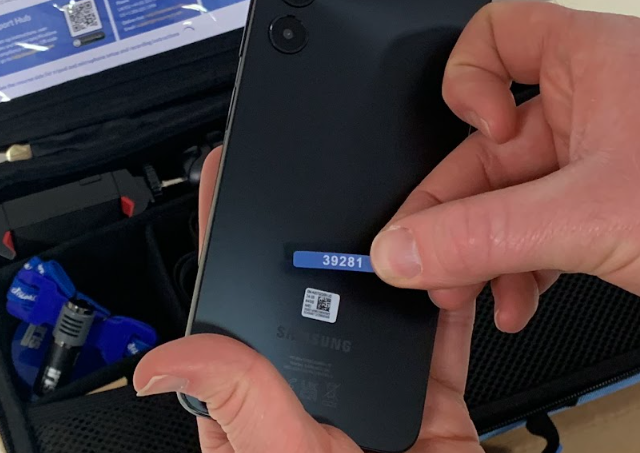

b. On the back of the device stick one of the small blue serial number stickers from the stickers pack.

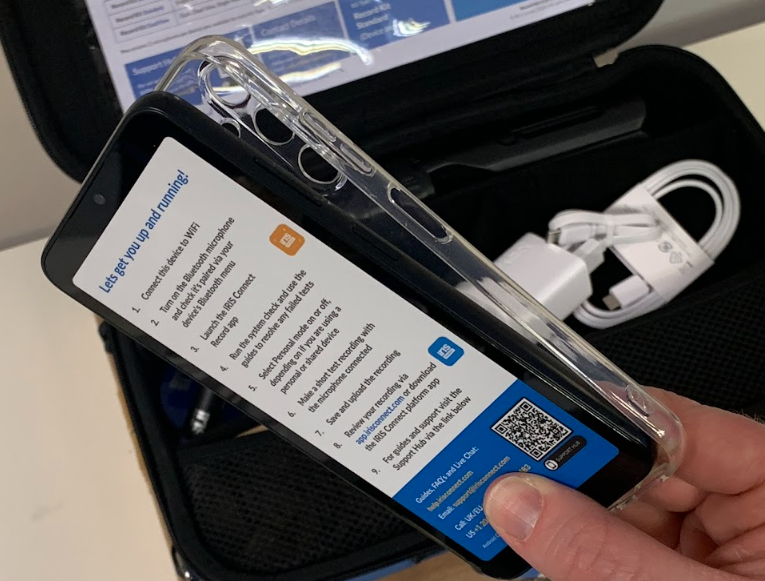

c. Then put the included device cover on the device/s.

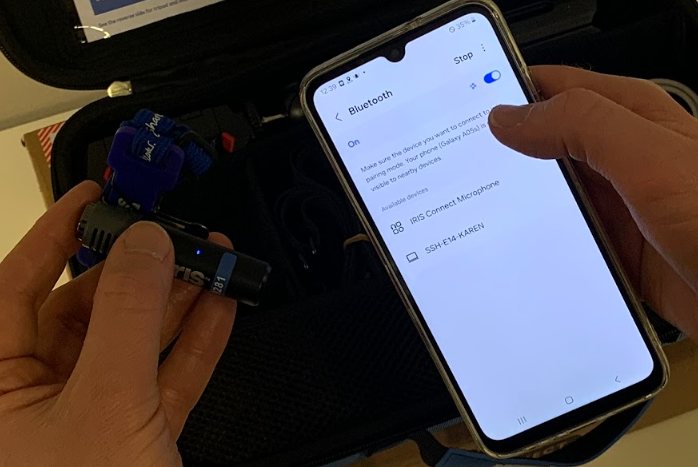

5) Mic Pairing

Pair the mic to the device as follows:

  1. Press and hold the button on the mic to turn it on. It should be rapidly flashing blue.
  2. On the device, use the Bluetooth menu/settings to pair to IRIS Connect Bluetooth Mic.
  3. If successful the mic will now flash blue intermittently and the device should say Connected.

Note - Step 5 will need completing every time new/different devices are used with the kit.

For a full guide on mic pairing see this article



Additional Information



Pro Version Kits

You can pair two mics to one device to capture additional mic audio. (e.g. on a DualView you will have 2 blue mics paired to the blue device and 2 to the green).

For a Basic or Standard kit (with one device) label the second mic with the blue mic sticker

For a DualView kit label the third mic with the blue sticker and the forth with a blue sticker and pair to the blue/green recording device accordingly.

Follow the pairing processes above for the additional mics.



Stickers and Labelling

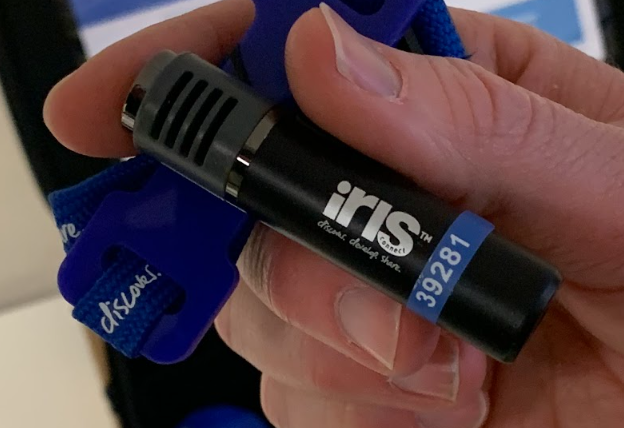

  • Serial Number stickers: Labelling the items in the kit with the kits serial number helps prevent items being mixed up between kits and maintain Bluetooth pairing.
  • Green and Blue Stickers: The green and blue colour coding is to make it clear in kits with multiple devices which mics are paired to which devices.

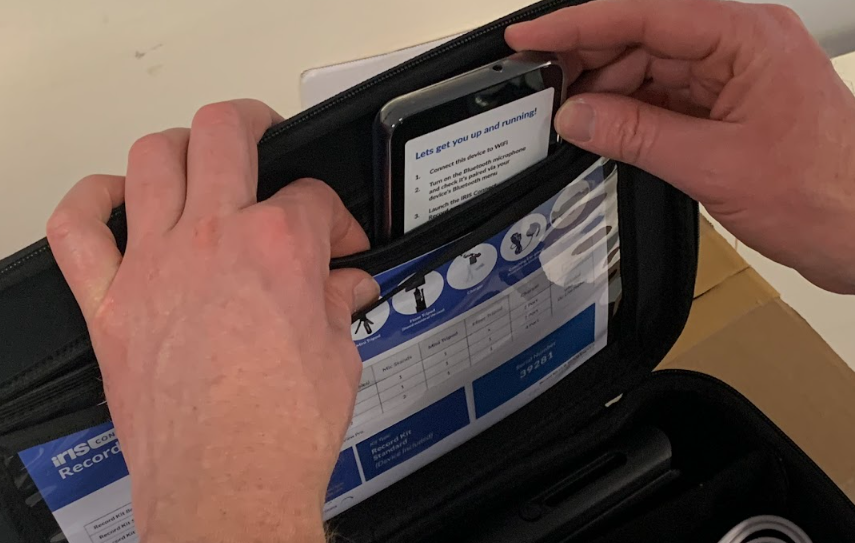

Storing the Devices in the kit

There are sections in the lid for devices to be stored in; the smaller front pockets for phones and the larger pocket behind for tablets/iPads. Device charging cables can be plugged into the charging plug/hub.

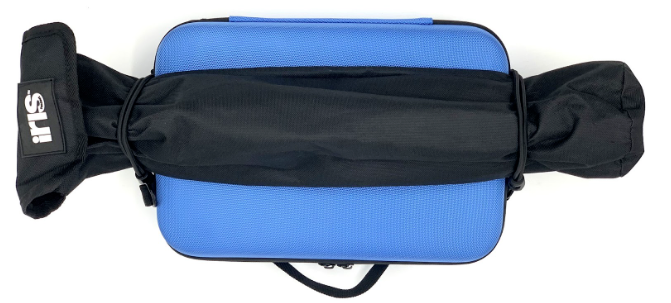

Storing/Carrying the Floor Tripod

If your kit comes with a floor tripod, this can either be carried separately or you can use the bungy cords (attached to the bottom of the case) to attach it to the case.
