Discovery Kit Technical Overview

Contents of this article:

• General Feature Overview
• Discovery Kit 8 (Current)
• Discovery Kit 7 (Discontinued)
• Discovery Kit 6 (Discontinued)

General Feature Overview

• IRIS Connect Record app – custom-built to automatically upload large video files directly into the user's IRIS Connect account then automatically remove the file from the device once uploaded
  • You can record offline so the app can be used outside of WiFi range
• Pairing technology to capture two views of the environment and two audio sources

Discovery Kit 8 - Launched Jan 2022: Current

Feature breakdown

• 2 devices (iPad or Android) with IRIS Connect Record app
• 2 Bluetooth microphones to capture dual audio, the educator(s) and the learner(s)
• Supports Go-Live coaching

Contents:

• iPad or Android devices x 2
  • Storage: 32GB
• Smart Mic Bluetooth Microphones x 2 (with lanyard and table stand)
  • Product size: 2.64*0.6 inch
  • Microphone: 6mm ECM
  • Bluetooth: 5.0
  • Bluetooth Distance: 98 feet/30 meters
  • Power capacity: 130 mAh
  • Battery life: 6 hours
  • Charge power: type c (Charging cable included)
  • Connector: 3.5mm audio connector
  • Frequency: 100Hz~20KHz
  • Recording Pattern: 48KHz-16bit AAC
  • Weight: 14g
• Tripod and Tablet Holder x 2
• Tripod Securing Velcro Strap x 2
• Orico USB 4 Charging Hub
• Go Live coaching earpiece

Record Device Battery Expectancy

The battery drops about 10% per hour of recording, so you can expect to get up to 10 hours recording on a single charge.

Turning the screen brightness down, and using the screen fade feature may improve this.

As you would expect with any lithium battery device, the battery capacity will deteriorate from age, how much it has been used, and will be affected by the charging methods used.

Dimensions: 61 x 43 x 21 cm

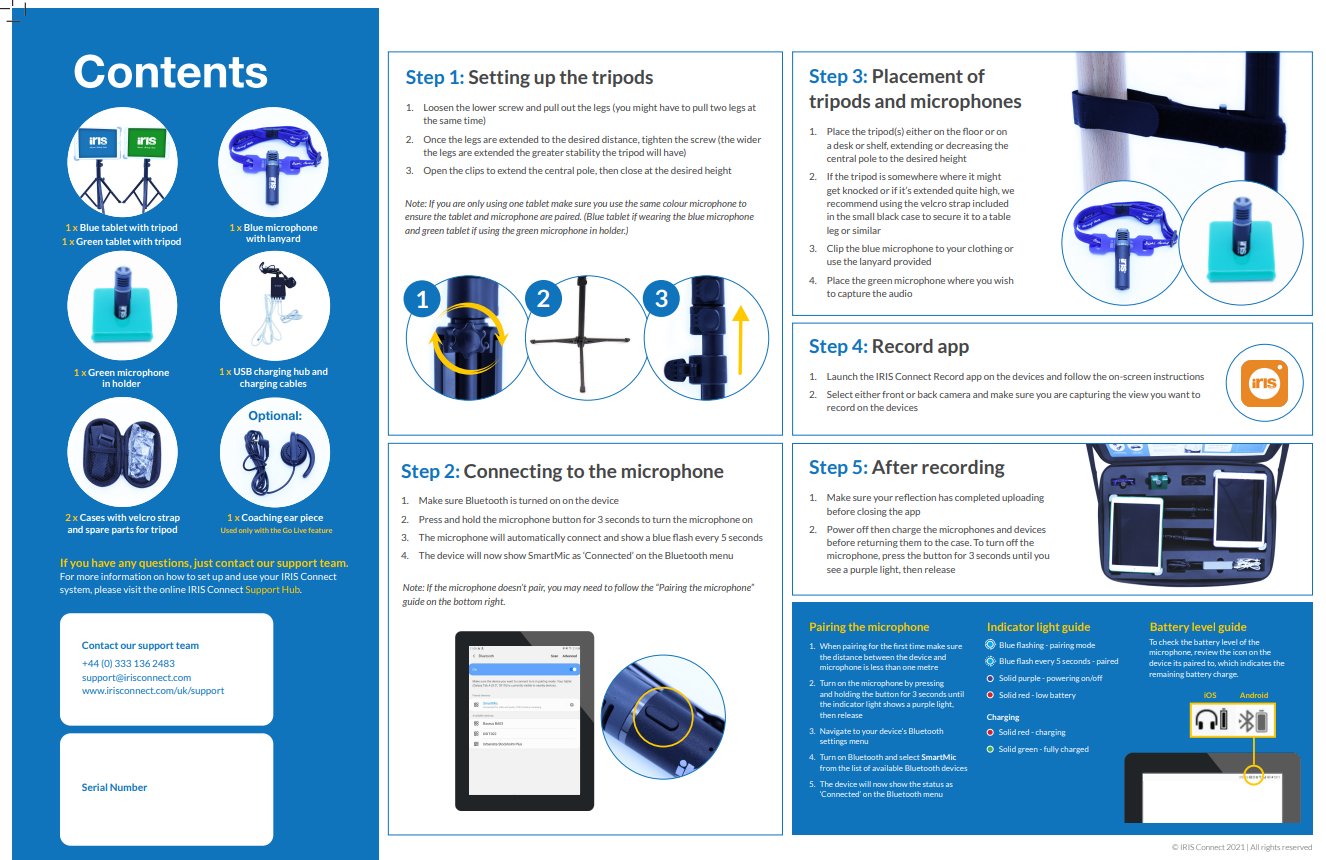

Click here for the instruction card v8.0

Click here for instruction card v8.1 (upgraded tripods)

Click here for instruction card v8.1 (upgraded tripods - Dutch)

Discovery Kit 7 - Discontinued

Feature breakdown

• 2 iPads with IRIS Connect Record app
• 2 iPods to capture dual audio, the educator(s) and the learner(s)
• Supports Go-Live coaching

Contents:

• Apple iPad x 2
  • Storage: 32GB
• Apple iPod Touch 6th Gen x 2 (one in holder with clip, one in protective foam case)
• Tripod and Tablet holder x 2
• Go Live coaching earpiece
• Lanyard for educators microphone

Dimensions: 61 x 43 x 21 cm

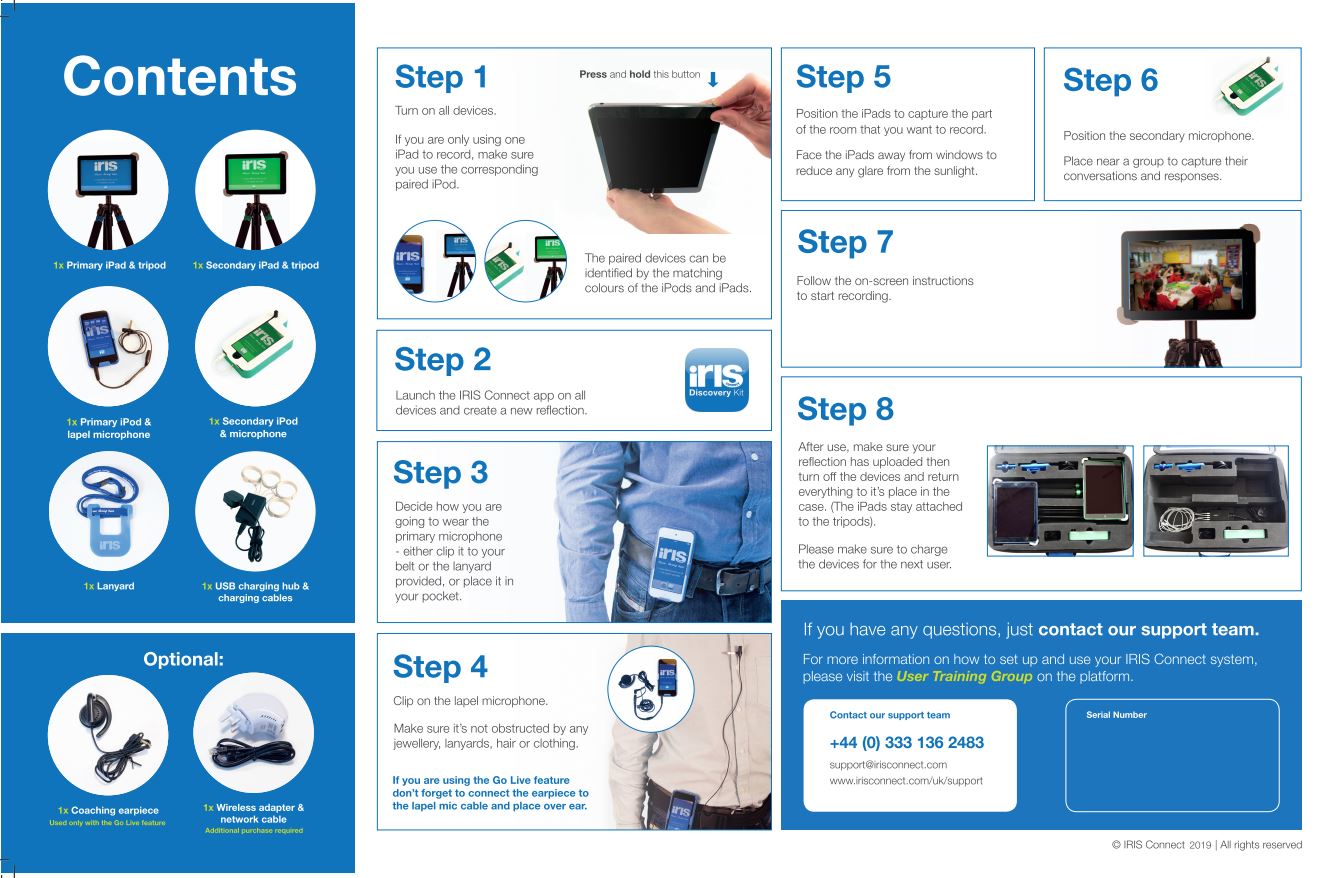

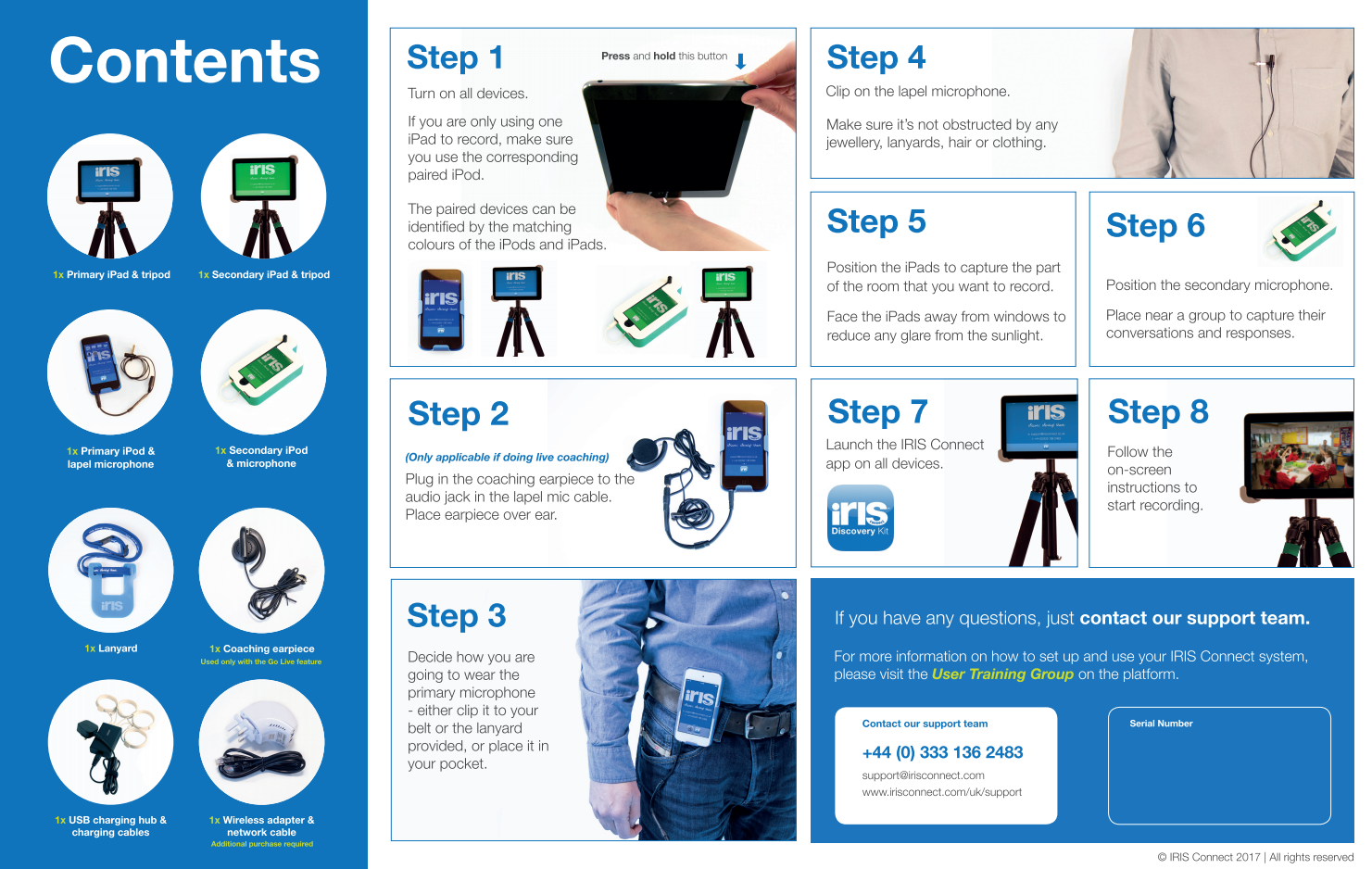

Click here for the instruction card - v2

Click here for the instruction card - v21

Discovery Kit 6 - Discontinued

Feature breakdown

• 2 iPads with IRIS Connect Record app
• 2 iPods to capture dual audio, the educator(s) and the learner(s)
• Supports Go-Live coaching

Contents:

• Apple iPad Mini x 2
• Apple iPod Touch 6th Gen x 2 (one in holder with clip, one in protective foam case)
• Tripod and Tablet holder x 2
• Go Live coaching earpiece
• Lanyard for educator microphone

Dimensions: 61 x 43 x 21 cm
